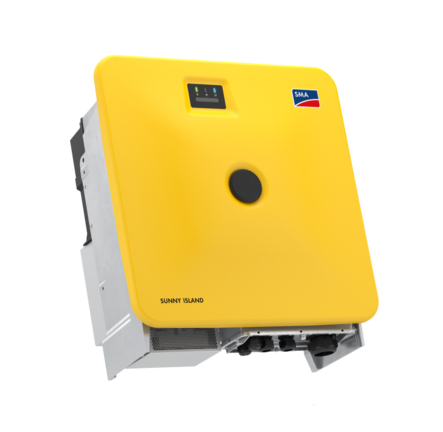

[Translate to English:] SMA Sunny Island X

More powerful then ever

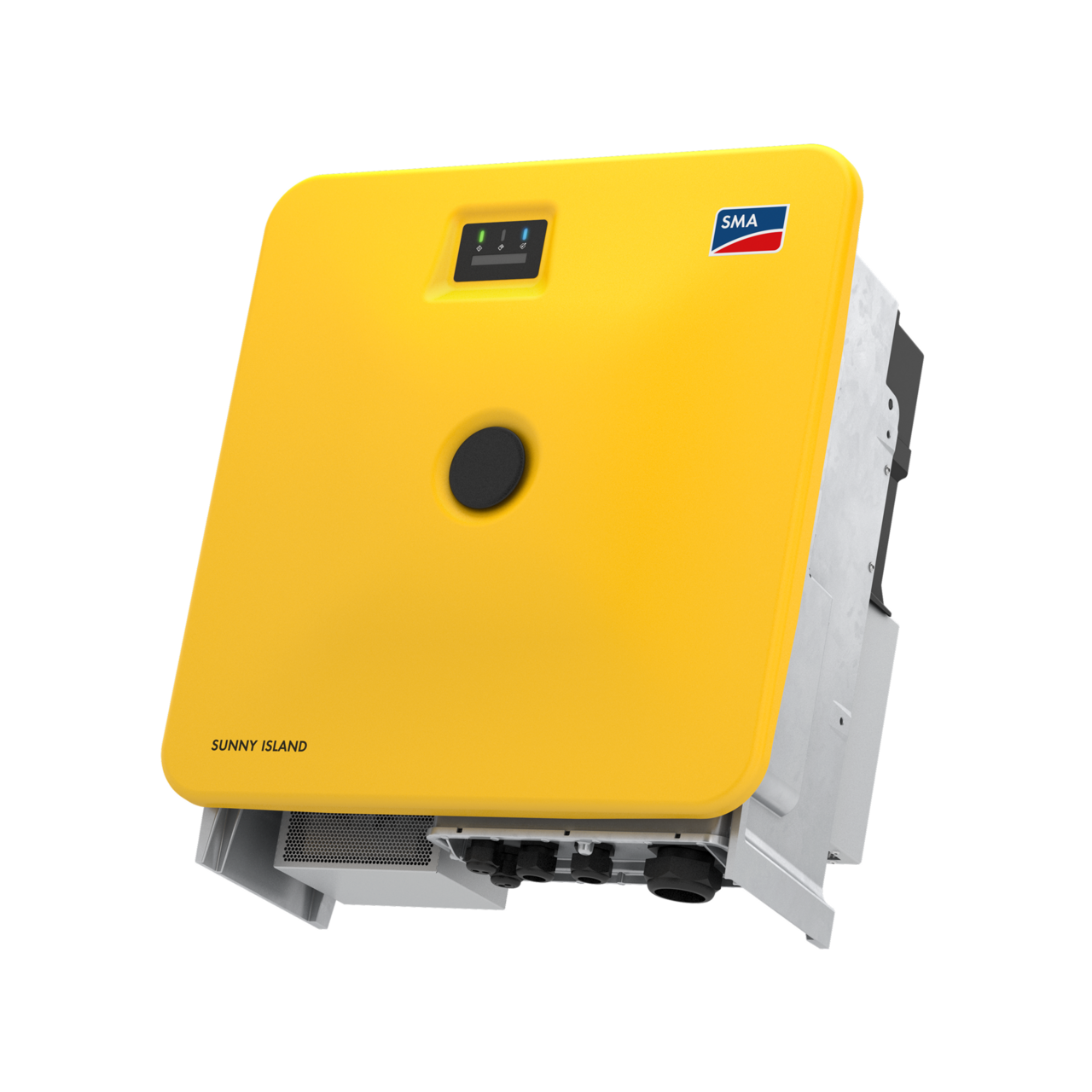

Sunny Island X SI30-20 / SI50-20

More power for your independence

The next generation of battery inverters

The Sunny Island X ensures that self-generated solar power is stored and made available at all times, whether in remote off-grid areas or on the utility grid. It is extremely versatile and ideal for both on-grid and off-grid installations.

The Sunny Island X impresses with its exceptional flexibility. Its modular design allows you to adjust the AC power and battery capacity of your system to meet your specific needs. Thanks to the integrated DC-to-DC converter, the Sunny Island X is compatible with a wide range of batteries, offering great flexibility in energy storage. In off-grid installations, generators or the utility grid can also be used as an energy source, when combined with the Sunny Island X Connection Box*. It delivers full power, even at extreme ambient temperatures up to 45 C.

Made to the highest quality standards in Germany, the Sunny Island X guarantees reliability and durability. In on-grid systems, the inverter improves energy management and ensures efficient use. The Sunny Portal powered by ennexOS interface allows you to visualize all the components in the Sunny Island system and monitor the energy flows. The flexible and robust battery inverter Sunny Island X offers you both energy reliability and independence.

* Sunny Island X Connection Box is an additional component.

ennexOS

Manage all energy flows at a glance.

Learn more

Benefits & Key Features

High Performance

High Performance

  • Nominal power up to high temperature ranges (45°C)

  • Intelligent energy and load control

  • Reliable load supply

Simple

Simple

  • Monitoring with Sunny Portal powered by ennexOS

  • Easy installation and handling

  • Commissioning training

Safe

Safe

  • German standards in cybersecurity

  • Integrated energy management for on-grid applications

  • 10 years of warranty (5+5) **

Fexibel

Fexible

  • Extensive battery integration

  • Integration of generators or utility grids in off-grid installations*

  • Scalable and standardized system design

* This is only possible in connection with the Sunny Island X Connection Box.
** When registering via the SMA product registration page. (my.sma-service.com)

Commercial Off-Grid Solution

Sunny Island X

FAQ

General information

Can you explain the frequency shift power control feature with the Sunny Island X?

When operating in off-grid systems, the SMA Hybrid Controller communicates setpoints to the PV inverters. To increase redundancy, FSPC (Frequency Shift Power Control) is also available.


When is the expected release date for the new Sunny Island X?

Pricing has been available since January 2025. Deliveries are anticipated to begin in April 2025.


Where are the new Sunny Island X inverters manufactured?

The Sunny Island X is designed and manufactured in Germany.


Does the issue of 'stuck' or 'welded' contacts in the relays of the Sunny Island X still exist?

The Sunny Island 4.4M / 6.0H / 8.0H has two AC terminals (AC1 and AC2). This could cause the contacts in the internal automatic transfer switching device to stick under unfavorable conditions.

The Sunny Island X only has one AC terminal and therefore does not have an internal automatic transfer switching device. Therefore, this issue is not expected to occur.


Is the Sunny Island X listed under the "off-grid systems" project type in Sunny Design?

The product is listed under off-grid systems and PV systems with self-consumption.


Is it possible to add batteries a year after the initial installation?

Expansion is possible if the battery manufacturer allows adding battery modules or battery cabinets to the existing systems.


Compatibility

Can existing batteries be reused when replacing existing battery inverters with the Sunny Island X?

highly recommends using approved batteries, as they have been tested to ensure optimal performance with the system. If third-party batteries (e.g., older Samsung batteries) are used, smooth system operation cannot be guaranteed.

Note that the entire battery voltage range must remain within the permissible DC input voltage range of the Sunny Island. The maximum permissible DC input voltage of the Sunny Island must not be exceeded.


Can the Sunny Island X 30 and Sunny Island X 50 be used together in the same system?

Yes, that is possible.


Could you provide a list of generators and lithium-ion batteries compatible with the Sunny Island X?

A compatibility list will be available for download on the Sunny Island X product page or in the download area at www.SMA-Solar.com.


Is it possible to connect a Sunny Island X to the grid without the SI X Connection Box?

For on-grid systems, the Sunny Island X can be operated with a single inverter without the SI X Connection Box.

For battery-backup operation, however, the SI X Connection Box is required.


Can customers use their own switch boxes, or is the SI X Connection Box always required?

For the initial setup of the first system with the Sunny Island X, recommends using the Sunny Island Connection Box from Enwitec. This aims to enhance understanding of the system architecture.

Nevertheless, it is fundamentally possible to build a switch box independently using the SMA Hybrid Controller or another compatible system controller.


Is the Sunny Island X only compatible with the EDMM-20?

Currently, only the EDMM-20 (SMA Data Manager M) supports the Sunny Tripower Storage X as a subordinate device.

With the EDMM-10 (SMA Data Manager M), the Sunny Island X is still not compatible (as of March 2025).


Communication

Is the Sunny Island X Modbus protocol available?

Yes, the information will be available shortly on the website (www.SMA-Solar.com).


Does the system support third-party control signals, including those for grid-supporting functions?

Yes, the system does support third-party control signals.

will provide the Modbus protocol to allow external systems to control the Sunny Island in both on-grid and off-grid systems.


Does the SMA Hybrid Controller use SunSecModbus to control the PV inverters?

The SMA Hybrid Controller uses Modbus SunSpec-Modbus communication to send commands to PV inverters. This enables the SMA Hybrid Controller to control SMA inverters, for example, when the battery is fully charged.

indicates that it has not been tested with inverters from third-party manufacturers.


Does the system support communication protocols DNP3 and IEC60870? Would a PLC be necessary to facilitate this conversion, or can it be achieved without one?

The SMA Hybrid Controller serves as a Power-Line Communication (PLC) system, facilitating a more straightforward conversion with integrated communication protocols for DNP3 and IEC 60870.


System

What is the new PV inverter to battery inverter ratio?

The ratio of PV inverter power to battery inverter power is 1.5:1.


How many devices can be connected in parallel?

In on-grid applications, up to 11 devices can be connected without requiring an additional SMA Data Manager (EDMM-20), and up to 50 devices can be connected when using the EDMM-20. In off-grid systems, up to 120 devices can be connected using the SMA Hybrid Controller.


Is it possible to combine both the Sunny Island 4.4M / 6.0H / 8.0H and Sunny Island X within a single system?

No, it is not possible. The Sunny Island 4.4M / 6.0H / 8.0H and Sunny Island X can not be combined within a single system.


What additional equipment should be installed with the Sunny Island X to control it using a central energy management system?

recommends using an EDMM-20 (SMA Data Manager M) to control a central energy management system.


Is a Sunny Island X Connection Box required for an on-grid system with multiple Sunny Island X units?

No, for on-grid systems, the Sunny Island X can be connected in parallel (without the Sunny Island X Connection Box).


Does each Sunny Island X require its own battery?

The Sunny Island X is an inverter without its own transformer. Therefore, each Sunny Island X in a system should have its own battery.


What happens in a multi-unit Sunny Island system if either an inverter or a Battery Management System fails and shuts down?

In systems with multiple Sunny Island X devices, the system remains operational if a Sunny Island X or a Battery Management System fails, and continues to function until the performance of the affected Sunny Island X or Battery Management System is adequately restored.


Does the system regulate the voltage output to maintain a stable voltage throughout the microgrid?

Yes, the Hybrid Controller regulates grid voltage by continuously transmitting setpoints to the inverters.


Does the intelligent control system support arbitrage under variable grid pricing, or is an external energy management system necessary?

Currently, the energy management system of the Sunny Island X does not include a feature for arbitrage applications, but inverters can be controlled via Modbus.


Can on-grid systems without the EDMM-20 (SMA Data Manager M) be upgraded with extra Sunny Island X units using batteries of different capacities or types?

Yes. You can use different Sunny Island X inverters with different battery capacities.


Does the Sunny Island X use the same topology as the Sunny Island 4.4M / 6.0H / 8.0H for controlling multiple inverters?

The Sunny Island 4.4M / 6.0H / 8.0H uses a topology where the main battery inverter (master) can control up to three subordinate battery inverters (slaves).

The Sunny Island X doesn't have this typology. Instead, the SMA Hybrid Controller can serve as the System Manager, controlling all Sunny Island X units operating together within a single system.

Off-grid systems do not have a System Manager. In on-grid systems, you can choose to set up one Sunny Island X as the System Manager for up to 11 devices in total.


Can end users configure a physical button to shut down or restart the Sunny Island X in emergencies using a digital input?

Yes, it is possible to install an additional module featuring digital inputs and outputs in the Sunny Island X. This enables the implementation of additional functions.


Can I set up a master-slave configuration with the Data Manager if I want to add more than 16 devices?

To achieve scalability beyond 16 devices, a configuration using the System Manager can be implemented, provided that the 16 devices include inverters, meters, and irradiance sensors.

Up to 50 devices can be connected to the EDMM-20 (SMA Data Manager M), including Sunny Island X, PV inverters, energy meters, and sensors, etc.


Equipment

Will the Sunny Island X feature a WebUI wizard or installation assistant?

Both the Sunny Island X and the SMA Hybrid Controller feature a web user interface.


The new Sunny Island X is transformerless. How does it compare to existing Sunny Island models in terms of handling surge loads from large pumps, compressors, and motors?

is currently testing the overload capacity of the Sunny Island X. Once we receive the results, we will update the datasheet as necessary.


Is there a protective shield or cover to prevent accidental contact with the bottom of the Sunny Island X unit?

Unlike the classic Sunny Island, the Sunny Island X does not have an external button for starting or stopping the inverter.


The Sunny Island X does not have AC1 and AC2 ports, unlike the Sunny Island 4.4M / 6.0H / 8.0H. Is this correct?

The Sunny Island X has only a single AC terminal.


Does the Sunny Island X support anti-islanding protection for interaction with the utility grid?

Anti-islanding is supported for on-grid applications.


Does the inverter have built-in DC-side overvoltage protection?

The Sunny Island X features built-in AC-side protection.

The Sunny Island X does not include overvoltage protection on the DC side, as it is not necessary for battery inverters.


How well does the Sunny Island X withstand voltage surges?

On the AC side, the Sunny Island X features an integrated surge protection device.


Specification

What is the switchover time for off-grid operations?

The switching time is under evaluation and is anticipated to be around 20 ms.


What is the response time of the Sunny Island X to charge and discharge commands from the energy management system?

A measurement/setpoint interval of 100 ms is possible.


What are the required specifications for the battery and Battery Management System?

The battery's voltage and current must be compatible with the DC range of the Sunny Island X.

In addition, the battery management system's communication must comply with SMA's protocol specifications.


Can the Sunny Island X withstand marine environments, such as installations near the coast?

Yes, it has corrosion protection according to IEC 61701 (C3). recommends operating the inverters in containers or sealed rooms when they are installed near the sea.


Can the nominal power be considered as 50 kW?

The system supports 50 kW at 400 VAC.


How many Sunny Island X inverters can be connected to the SI Connection Box 500?

Up to 10 inverters can be connected to the SI Connection Box 500.


How many generators can be connected in parallel with the Sunny Island X Connection Box, and how are they configured in these types of systems?

Up to 16 generators can be connected when using compatible genset controllers with the SMA Hybrid Controller.


Is it possible to operate up to 120 devices in parallel?

Yes, with the SMA Hybrid Controller, the system can manage energy effectively.


Is the Sunny Island X capable of peak load shaving or self-consumption for on-grid systems solely with an Energy Meter, without the need for the EDMM?

For on-grid systems, up to 11 devices can seamlessly operate within an integrated energy management system without the need for the EDMM-20 (SMA Data Manager M).


Are the grounding requirements for the Sunny Island X without a transformer more stringent than those for the Sunny Island 4.4M / 6.0H / 8.0H?

The grounding topology of the Sunny Island X is similar to that of the Sunny Island 4.4M / 6.0H / 8.0H, compatible with TT and TN grids. A TN configuration is used in stand-alone mode. The devices can be grounded; while the grounding of DC poles is prohibited.


Sunny Island X

Accessories

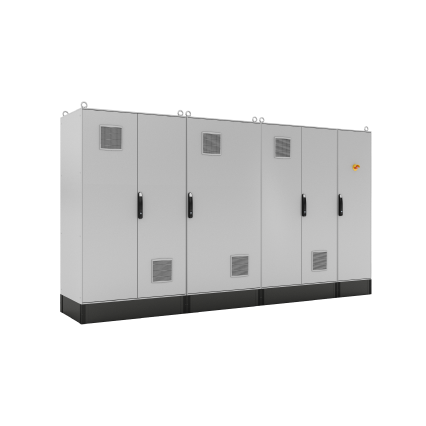

Sunny Island X Connection Box

The Sunny Island X Connection Box is the AC distribution board for connecting and managing all system components.

Equipped with a Hybrid Controller, it offers different system variants in conjunction with the Sunny Island X battery inverter.

In addition to the Hybrid Controller, SMA Data Manager M is preinstalled in the Sunny Island X Connection Box to manage energy for various applications.

The AC connection box is not an SMA product. It is manufactured by third-party providers on behalf of SMA (e.g., SMA partner enwitec.eu).

The following variants are available for up to 10 or 16 Sunny Island X units:

  • Sunny Island X Connection Box for grid or generator connection

  • Sunny Island X Connection Box for grid and generator connection with an integrated automatic transfer switch (ATS)

  • Sunny Island X Connection Box for generators with their own management system

For more information and a personalized offer, contact us at: sunnyisland@sma.de

Or reach out directly to your sales partner at SMA.

SMA Sunny Island X Connection Box

Sunny Island X
