SMA Commercial eMobility Solution

Both are possible, with 1 supply line both charging points can charge together with 22 kW. With 2 supply lines, both charging points can each charge with 22 kW.

The SMA EV Charger Business is available immediately.

For prices of the SMA EV Charger Business, please contact your trade partner or your installer.

The SMA EV Charger Business is part of our SMA Commercial eMobility Solution, which includes the charger itself, the new SMA eMoblility Portal, various services and extensive accessories.

The device has two charging points with a maximum charging power of 22 kW each. Two SMA EV Charger Business can be installed on one pole. Thus, up to four charging points can be realized with one installation and in one work step.

The Charger itself offers a variety of functions such as integrated dynamic charging load management, authentication via RFID, an OCPP interface for integration into the SMA eMobility Portal, remote updates and an MID- compliant meter. From Q2/2023, there will also be a version of the SMA EV Charger Business that complies with calibration regulations.

No, the EV Charger Business does not support bidirectional charging. For intermediate storage of surplus PV energy, SMA offers a storage solution as part of the SMA Commercial Energy Solutions, which was developed and optimized for commercial applications with its scalable storage capacity and its high charging and discharging performance. This storage solution optimally supports you in increasing your own consumption and/or avoiding peak loads.

The SMA EV Charger Business comes with a two-year warranty. This warranty can be extended by five years to a total of seven years at a charge.

The SMA EV Charger Business has a 6mA DC residual current monitor and an integrated RCDB type A residual current circuit breaker.

The SMA EV Charger Business is manufactured in Germany, which is why we have short delivery routes and therefore short delivery times.

No.

Within the first five years, there are no further costs for using the SMA eMobility Portal.

Yes, the eMobility Portal has been optimized for use on the terminal devices.

There is no obligation to use the SMA eMobility Portal. The operation of the SMA EV Charger Business with another backend is possible in principle, but not recommended. On the one hand, the backend is available to you for the first 5 years at no additional cost, and on the other hand, we only offer our remote service for Chargers that are registered and online in the SMA eMobility Portal.

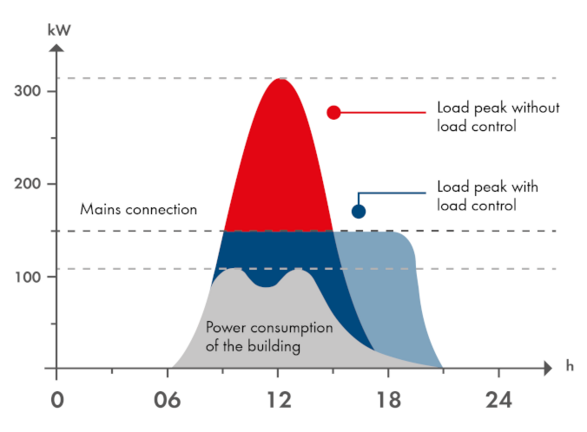

In principle, dynamic charging load management also works without additional energy and power measurement. You only need this if the dynamic charging load management is also to consider self-consumption and/or generation from PV. Our recommendation is the Janitza UMG 604 Pro, as this is compatible with our commercial storage solution. Alternatively, you can also use the Siemens 7KM2200.

Operation without a backend is possible in principle, but not recommended. On the one hand, the backend is available to you for the first five years at no additional cost, and on the other hand, we only offer our remote service for Chargers that are registered and online in the SMA eMobility Portal.

No, it is not possible to convert chargers with an MID- compliant energy meter to a charger that complies with calibration law, as not only the energy meter must be replaced or converted in order to meet the requirements of calibration law.

In principle, dynamic charging load management also works without additional energy and power measurement. You only need this if the dynamic charging load management is also to take into account self-consumption and/or generation from PV.

2, further cards can be ordered later. In addition, you can also use existing RFID cards. The SMA EV Charger Business supports all Mifare variants currently available on the market. We recommend the use of cards from the Mifare DESFire series, such as the EV1 or EV3.

The custody transfer compliant version of the SMA EV Charger Business will also be available with a mobile modem. The calibration compliant SMA EV Charger Business will be available from the beginning of Q2 2023.

In principle, it is possible to operate the SMA EV Charger Business with another backend. However, we only offer our remote service for Chargers that are registered and online in the SMA eMobility Portal.

The calibration law and thus also the compliance with calibration law always refers to the entire device and not only to the energy meter. The SMA EV Charger Business as a whole device is developed, manufactured and calibrated in compliance with calibration law.

The SMA EV Chharger Business supports all Mifare variants currently available on the market. We recommend using cards from the Mifare DESFire series, such as the EV1 or EV3.

The dynamic load management of the SMA EV Charger Business supports up to 250 charging points and thus 125 SMA EV Charger Business.

The charging cable will also be available as a replacement part in the future. Please note that you are entitled to a replacement unit within the warranty period.
